JT-E3775
Description
JT-E3775 is a modified epoxy acrylate resin used in the production of alkaline developer solder mask ink for flexible circuit boards (Flexible PCB). It features excellent flexibility, high resolution, high adhesion, heat resistance, high gloss, surface hardness, and high-speed UV hardening.
Application
Suitable for screen printing process and multilayer flexible printed circuit.
Specification
| Appearance | Clear viscous liquid |
|---|---|
| Color (Gardner) | 6 max |
| Viscocity (cps/25℃) | 30,000 ~ 50,000 |
| Acid Value (mg KOH/g) | 62 ~ 68 |
| Epoxy equivalent (g/eq.) | > 50,000 |
These values are used as reference. For detailed product specifications, please contact our distributor or sales department.
Package

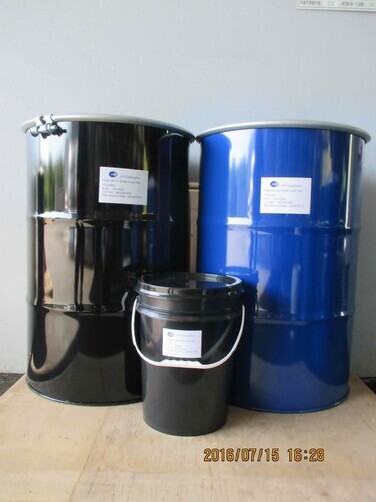

200Kg Iron drum
Storage
- Keep away from high temperature and avoid to exposed to sun-light. Keep tightly closed when it is stored. The suggestion period of storage is 6 months.
