JT-E312DPM
Description
JT-E312DPM is a acrylic copolymer for liquid photoresist developed in alkaline aqueous solution, it has narrow molecular weight distribution. It features excellent sensitivity, high linear resolution and surface hardness.
Application
It can be used in processes with low energy UV exposure and high linear resolution, and suitable for screen printing process.
Specification
| Appearance | Clear viscous liquid |
|---|---|
| Color (Gardner) | 3 max |
| Viscocity (cps/25℃) | 55,000 ~ 95,000 |
| Acid Value (mg KOH/g) | 36 ~ 40 |
| Epoxy equivalent (g/eq.) | > 27,000 |
| Solid Content (200℃×1hr,%) | 48 ~ 52 |
These values are used as reference. For detailed product specifications, please contact our distributor or sales department.

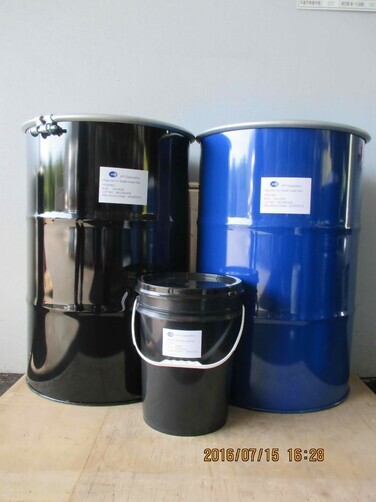

Package
200Kg Iron drum
Storage
- Keep away from high temperature and avoid to exposed to sun-light. Keep tightly closed when it is stored. The suggestion period of storage is 6 months.
